| Für Ihre Information: | |
|---|---|
|
|
| Bildnummer | Artikelname | Preis |
|---|---|---|
| 1 | pin, traverse | Preis |
| 2 | lifting assembly | Preis |
| 3 | pin | Preis |
| 4 | rod assembly, push | Preis |
| 8 | axle | Preis |
| 9 | roll pin | Preis |
| 10 | roller, exit | Preis |
| 11 | link, right rear | Preis |
| 12 | link, left rear | Preis |
| 13 | roll pin | Preis |
| 15a | roller ass. poly | Preis |
| 15b | roller ass. nylon | Preis |
| 15c | roller ass. steel | Preis |
| 16 | roller, entry | Preis |
| 17 | pin | Preis |
| 18 | pin | Preis |
| 19 | link, left rear | Preis |
| 20 | link, right rear | Preis |
| 6 | bushing | Preis |
| 7 | bushing | Preis |
| 23 | stud | Preis |
| 24 | axle, roller | Preis |
| 25 | bushing | Preis |
| 26 | balance, external | Preis |
| 27 | bushing | Preis |
| 14 | bearing | Preis |
| 29a | roller ass. poly | Preis |
| 29b | roller ass. nylon | Preis |
| 29c | roller ass. steel | Preis |
| 30 | bushing | Preis |
| 31 | frame assembly (520) | Preis |
| 32 | bushing | Preis |
| 33 | bushing | Preis |
| 35 | screw | Preis |
| 36 | nut | Preis |
| 5 | roll pin | Preis |
| 38 | roll pin | Preis |

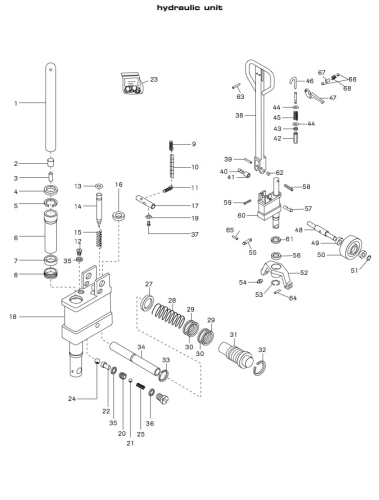

| Bildnummer | Artikelname | Preis |
|---|---|---|
| 1 | ram, piston | Preis |
| 2 | sleeve | Preis |
| 3 | magnet | Preis |
| 4 | seal | Preis |
| 5 | ring, retaining | Preis |
| 6 | bushing | Preis |
| 7 | packing rod | Preis |
| 8 | spacer | Preis |
| 9 | pin, threaded | Preis |
| 10a | chain | Preis |
| 10b | link connecting | Preis |
| 11 | connector, chain | Preis |
| 12 | screw | Preis |
| 13 | o-ring | Preis |
| 14 | piston, control | Preis |
| 15 | spring | Preis |
| 16 | seal | Preis |
| 17 | pin | Preis |
| 18 | body assembly | Preis |
| 19 | actuating plate | Preis |
| 20 | ball, housing | Preis |
| 21 | ball | Preis |
| 22 | tappet | Preis |
| 23 | Dichtsatz Crown PTH ab Serie 3-183850 | Preis |
| 25 | spring | Preis |
| 26 | screw, plug | Preis |
| 27 | washer | Preis |
| 28 | spring | Preis |
| 29 | ring, back-up | Preis |
| 30 | o-ring | Preis |
| 32 | ring, retaining | Preis |
| 31 | cylinder, pump | Preis |
| 35 | washer | Preis |
| 36 | washer | Preis |
| 37 | screw, countersunk | Preis |
| 38a | handle sub ass. | Preis |
| 38b | handle assembly | Preis |
| 39 | pin | Preis |
| 40 | bearing | Preis |
| 41 | roller | Preis |
| 42 | hexagon | Preis |
| 43 | nut | Preis |
| 44 | washer | Preis |
| 45 | spring | Preis |
| 46 | rod, pull | Preis |
| 47 | handle, actuating | Preis |
| 48 | axle, front | Preis |
| 49 | ball bearing | Preis |
| 50a | wheel ass. poly | Preis |
| 50b | wheel ass. nylon | Preis |
| 50c | wheel ass. steel | Preis |
| 33 | ring, retaining | Preis |
| 52 | traverse | Preis |
| 53 | ring, retaining | Preis |
| 54 | fitting, grease | Preis |
| 56 | bearing | Preis |
| 57 | pin, pin handle | Preis |
| 58 | roll pin | Preis |
| 59 | roll pin | Preis |
| 60 | hydraulic unit | Preis |
| 61 | washer | Preis |
| 62 | bushing | Preis |
| 63 | roll pin | Preis |
| 55 | pin axle | Preis |
| 24 | ball | Preis |
| 67 | tube | Preis |
| 68 | spring | Preis |
