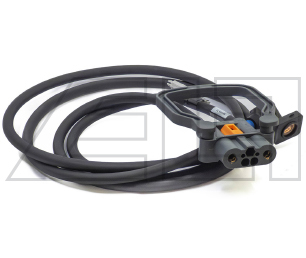

Name: REMA MRC 80 Terminal Cable Set (Battery) 570/670/25 mm²
SKU: 25497822
Availability: InStock

description

The MRC connector, short for MOULDED-REMA-CONTACT, is permanently moulded by the manufacturer to ensure the best possible current flow.

They are already installed in many new vehicles and can only be replaced by identical connectors. When ordering with your manufacturer number, you can be sure that you will receive the correct connector for your machine.
Use email or our express enquiry to send us your vehicle data.

Other forklifts can also benefit from MRC connectors, since the extremely dense workmanship improves durability and current flow.
Any configuration with pilot or auxiliary contacts and/or EUW connections and hoses can be ordered via express request.

MRC 80A plugs can also be loaded with 120A at rated current II.

In this category, you can see which components are available for the MRC 80A. Auxiliary and pilot contacts as well as EUW can also be retrofitted to a finished MRC connector.
MRC 80A connectors are compatible with REMA DIN 80A connectors.

Filter

Brand

mm²

Type

Assembly side

Länge Minuskabel (mm)

Plusklemme

Minusklemme

Codierstift

Griff

Länge Pluskabel (mm)

Amp

Side of Installation

Colour

Product.Nr.: 25497822

REMA MRC 80 Terminal Cable Set (Battery) 570/670/25 mm²

Brand	REMA
mm²	25
Type	MRC 80
Assembly side	Batterie
Länge Minuskabel (mm)	670
Plusklemme	M10
Minusklemme	M10
Codierstift	Grau
Griff	Nein
Länge Pluskabel (mm)	570

Product.Nr.: 25497823

REMA MRC 80 Terminal Cable Set (Battery) 800/800/25 mm²

Brand	REMA
mm²	25
Type	MRC 80
Assembly side	Batterie
Länge Minuskabel (mm)	800
Plusklemme	Flex
Minusklemme	Flex
Codierstift	Grau
Griff	Ja
Länge Pluskabel (mm)	800

Product.Nr.: 25497824

REMA MRC 80 Terminal Cable Set (Battery) 830/630/25 mm²

Brand	REMA
mm²	25
Type	MRC 80
Assembly side	Batterie
Länge Minuskabel (mm)	630
Plusklemme	Flex
Minusklemme	Flex
Codierstift	Grau
Griff	Ja
Länge Pluskabel (mm)	830

Product.Nr.: 25497825

REMA MRC 80 Terminal Cable Set (Battery) 940/940/25 mm²

Brand	REMA
mm²	25
Type	MRC 80
Assembly side	Batterie
Länge Minuskabel (mm)	940
Plusklemme	Perfect
Minusklemme	Perfect
Codierstift	Grau
Griff	Nein
Länge Pluskabel (mm)	940

Product.Nr.: 25497826

REMA MRC 80 Terminal Cable Set (Battery) 950/950/25 mm²

Brand	REMA
mm²	25
Type	MRC 80
Assembly side	Batterie
Länge Minuskabel (mm)	950
Plusklemme	Flex
Minusklemme	Flex
Codierstift	–
Griff	Ja
Länge Pluskabel (mm)	950

Product.Nr.: 25497827

Endkabelsatz REMA MRC 80 (Batterie) 1045/740/25 mm²

Brand	REMA
mm²	25
Type	MRC 80
Assembly side	Batterie
Länge Minuskabel (mm)	740
Plusklemme	M10
Minusklemme	M10
Codierstift	Grau
Griff	Nein
Länge Pluskabel (mm)	1045

Product.Nr.: 25497828

REMA MRC 80 Terminal Cable Set (Battery) 1200/1200/25 mm²

Brand	REMA
mm²	25
Type	MRC 80
Assembly side	Batterie
Länge Minuskabel (mm)	1200
Plusklemme	Flex
Minusklemme	Flex
Codierstift	Grau
Griff	Ja
Länge Pluskabel (mm)	1200

Product.Nr.: 25497817

REMA MRC 80 Terminal Cable Set (FZ/Charger) 550/850/16 mm²

Brand	REMA
mm²	16
Type	MRC 80
Assembly side	FZ/Ladegerät
Länge Minuskabel (mm)	850
Plusklemme	M8 (45°)
Minusklemme	M6
Codierstift	Grau
Griff	Nein
Länge Pluskabel (mm)	550

Product.Nr.: 25497818

REMA MRC 80 Terminal Cable Set (FZ/Charger) 2510/2630/16 mm²

Brand	REMA
mm²	16
Type	MRC 80
Assembly side	FZ/Ladegerät
Länge Minuskabel (mm)	2630
Plusklemme	M8
Minusklemme	M8
Codierstift	Grau
Griff	Ja
Länge Pluskabel (mm)	2510

Product.Nr.: 25497819

REMA MRC 80 Terminal Cable Set (FZ/Charger) 835/835/25 mm²

Brand	REMA
mm²	25
Type	MRC 80
Assembly side	FZ/Ladegerät
Länge Minuskabel (mm)	835
Plusklemme	M8
Minusklemme	M8
Codierstift	Gelb
Griff	Nein
Länge Pluskabel (mm)	835

Product.Nr.: 25497820

REMA MRC 80 Terminal Cable Set (FZ/Charger) 3000/3000/25 mm²

Brand	REMA
mm²	25
Type	MRC 80
Assembly side	FZ/Ladegerät
Länge Minuskabel (mm)	3000
Plusklemme	M8
Minusklemme	M8
Codierstift	–
Griff	Ja
Länge Pluskabel (mm)	3000

Product.Nr.: 25497821

REMA MRC 80 Terminal Cable Set (FZ/Charger) 220/440/35 mm²

Brand	REMA
mm²	35
Type	MRC 80
Assembly side	FZ/Ladegerät
Länge Minuskabel (mm)	440
Plusklemme	M8
Minusklemme	M8
Codierstift	Gelb
Griff	Nein
Länge Pluskabel (mm)	220

Product.Nr.: 25449407

REMA MRC 80A, lock-part current I, socket (battery)

Brand	REMA
Type	MRC 80/120A
Amp	80A
Side of Installation	Battery

Product.Nr.: 25449408

REMA MRC 80A, Circuit Breaker, Rated Current II (120A), Socket (B

Brand	REMA
Type	MRC 80/120A
Amp	120A
Side of Installation	Battery

Product.Nr.: 25449405

REMA MRC 80A, lock-part current I, plug (vehicle/charger)

Brand	REMA
Type	MRC 80/120A
Amp	120A
Side of Installation	Vehicle/Charger

Product.Nr.: 25449406

REMA MRC 80A, lock-part II, plug (vehicle/charger)

Brand	REMA
Type	MRC 80/120A
Amp	120A
Side of Installation	Vehicle/Charger

Product.Nr.: 623746

REMA DIN 80A, pilotcontact socket (battery)

Brand	REMA
Type	DIN 80A MRC 80/120A
Side of Installation	Battery

Product.Nr.: 623747

REMA DIN 80A, pilotcontact plug (vehicle/charger)

Brand	REMA
Type	DIN 80A MRC 80/120A
Side of Installation	Vehicle/Charger

Product.Nr.: 216012

REMA DIN 80A, aux. contact, socket (battery)

Brand	REMA
Type	DIN 80A MRC 80/120A
Side of Installation	Battery

Product.Nr.: 215982

REMA DIN 80A/160A, aux. contact, plug (vehicle/charger)

Brand	REMA
Type	DIN 160A MRC 160/250A
Side of Installation	Vehicle/Charger

Product.Nr.: 668389

REMA DIN 80A, air adapter socket 6/8 mm (battery)

Brand	REMA
Type	DIN 80A MRC 80/120A
Side of Installation	Battery
Colour	blue

Product.Nr.: 668398

REMA DIN 80A, air adapter plug 6/8 mm (vehicle/charger)

Brand	REMA
Type	DIN 80A MRC 80/120A
Side of Installation	Vehicle/Charger
Colour	blue

Product.Nr.: 668681

REMA DIN 80A, handle, grau (clip)

Brand	REMA
Type	DIN 80A MRC 80/120A
Side of Installation	Battery Vehicle/Charger
Colour	black

Product.Nr.: 668684

REMA DIN 80A, handle red, snap-lock

Brand	REMA
Type	DIN80 MRC 80/120A
Side of Installation	Battery Vehicle/Charger
Colour	red

Product.Nr.: 290647

REMA DIN 80A, screw-on handle

Brand	REMA
Type	DIN 80A MRC 80/120A
Side of Installation	Battery Vehicle/Charger
Colour	black

Product.Nr.: 25456192

REMA DIN/MRC 80/120A, coding pin, grey

Brand	REMA
Type	MRC 80/120A DIN 80A
Colour	grey

Product.Nr.: 25456194

REMA DIN/MRC 80/120A, coding pin, green

Brand	REMA
Type	MRC 80/120A DIN 80A
Colour	green

Product.Nr.: 25456195

REMA DIN/MRC 80/120A, coding pin, yellow plug (vehicle)

Brand	REMA
Type	MRC 80/120A DIN 80A
Side of Installation	Fahrzeug
Colour	yellow

Product.Nr.: 25456196

REMA DIN/MRC 80/120A, coding pin, red, plug (vehicle/charger)

Brand	REMA
Type	MRC 80/120A
Side of Installation	Vehicle/Charger
Colour	red

Product.Nr.: 25456197

REMA DIN/MRC 80/120A coding pin, red, socket (battery)

Brand	REMA
Type	MRC 80/120A
Side of Installation	Battery
Colour	red

Product.Nr.: 25456198

REMA DIN/MRC 80/120A coding pin, blue, plug (vehicle/charger)

Brand	REMA
Type	MRC 80/120A
Assembly side	FZ/Ladegerät
Colour	blue

Product.Nr.: 25456199

REMA DIN/MRC 80/120A coding pin, blue, socket (battery)

Brand	REMA
Type	MRC 80/120A
Side of Installation	Battery
Colour	blue

Art.Nr.	Artikelname	Brand	mm²	Type	Assembly side	Länge Minuskabel (mm)	Plusklemme	Minusklemme	Codierstift	Griff	Länge Pluskabel (mm)	Amp	Side of Installation	Colour	Preis
25497822	REMA MRC 80 Terminal Cable Set (Battery) 570/670/25 mm²	REMA	25	MRC 80	Batterie	670	M10	M10	Grau	Nein	570				price
25497823	REMA MRC 80 Terminal Cable Set (Battery) 800/800/25 mm²	REMA	25	MRC 80	Batterie	800	Flex	Flex	Grau	Ja	800				price
25497824	REMA MRC 80 Terminal Cable Set (Battery) 830/630/25 mm²	REMA	25	MRC 80	Batterie	630	Flex	Flex	Grau	Ja	830				price
25497825	REMA MRC 80 Terminal Cable Set (Battery) 940/940/25 mm²	REMA	25	MRC 80	Batterie	940	Perfect	Perfect	Grau	Nein	940				price
25497826	REMA MRC 80 Terminal Cable Set (Battery) 950/950/25 mm²	REMA	25	MRC 80	Batterie	950	Flex	Flex	–	Ja	950				price
25497827	Endkabelsatz REMA MRC 80 (Batterie) 1045/740/25 mm²	REMA	25	MRC 80	Batterie	740	M10	M10	Grau	Nein	1045				price
25497828	REMA MRC 80 Terminal Cable Set (Battery) 1200/1200/25 mm²	REMA	25	MRC 80	Batterie	1200	Flex	Flex	Grau	Ja	1200				price
25497817	REMA MRC 80 Terminal Cable Set (FZ/Charger) 550/850/16 mm²	REMA	16	MRC 80	FZ/Ladegerät	850	M8 (45°)	M6	Grau	Nein	550				price
25497818	REMA MRC 80 Terminal Cable Set (FZ/Charger) 2510/2630/16 mm²	REMA	16	MRC 80	FZ/Ladegerät	2630	M8	M8	Grau	Ja	2510				price
25497819	REMA MRC 80 Terminal Cable Set (FZ/Charger) 835/835/25 mm²	REMA	25	MRC 80	FZ/Ladegerät	835	M8	M8	Gelb	Nein	835				price
25497820	REMA MRC 80 Terminal Cable Set (FZ/Charger) 3000/3000/25 mm²	REMA	25	MRC 80	FZ/Ladegerät	3000	M8	M8	–	Ja	3000				price
25497821	REMA MRC 80 Terminal Cable Set (FZ/Charger) 220/440/35 mm²	REMA	35	MRC 80	FZ/Ladegerät	440	M8	M8	Gelb	Nein	220				price
25449407	REMA MRC 80A, lock-part current I, socket (battery)	REMA		MRC 80/120A								80A	Battery		price
25449408	REMA MRC 80A, Circuit Breaker, Rated Current II (120A), Socket (B	REMA		MRC 80/120A								120A	Battery		price
25449405	REMA MRC 80A, lock-part current I, plug (vehicle/charger)	REMA		MRC 80/120A								120A	Vehicle/Charger		price
25449406	REMA MRC 80A, lock-part II, plug (vehicle/charger)	REMA		MRC 80/120A								120A	Vehicle/Charger		price
623746	REMA DIN 80A, pilotcontact socket (battery)	REMA		DIN 80A MRC 80/120A									Battery		price
623747	REMA DIN 80A, pilotcontact plug (vehicle/charger)	REMA		DIN 80A MRC 80/120A									Vehicle/Charger		price
216012	REMA DIN 80A, aux. contact, socket (battery)	REMA		DIN 80A MRC 80/120A									Battery		price
215982	REMA DIN 80A/160A, aux. contact, plug (vehicle/charger)	REMA		DIN 160A MRC 160/250A									Vehicle/Charger		price
668389	REMA DIN 80A, air adapter socket 6/8 mm (battery)	REMA		DIN 80A MRC 80/120A									Battery	blue	price
668398	REMA DIN 80A, air adapter plug 6/8 mm (vehicle/charger)	REMA		DIN 80A MRC 80/120A									Vehicle/Charger	blue	price
668681	REMA DIN 80A, handle, grau (clip)	REMA		DIN 80A MRC 80/120A									Battery Vehicle/Charger	black	price
668684	REMA DIN 80A, handle red, snap-lock	REMA		DIN80 MRC 80/120A									Battery Vehicle/Charger	red	price
290647	REMA DIN 80A, screw-on handle	REMA		DIN 80A MRC 80/120A									Battery Vehicle/Charger	black	price
25456192	REMA DIN/MRC 80/120A, coding pin, grey	REMA		MRC 80/120A DIN 80A										grey	price
25456194	REMA DIN/MRC 80/120A, coding pin, green	REMA		MRC 80/120A DIN 80A										green	price
25456195	REMA DIN/MRC 80/120A, coding pin, yellow plug (vehicle)	REMA		MRC 80/120A DIN 80A									Fahrzeug	yellow	price
25456196	REMA DIN/MRC 80/120A, coding pin, red, plug (vehicle/charger)	REMA		MRC 80/120A									Vehicle/Charger	red	price
25456197	REMA DIN/MRC 80/120A coding pin, red, socket (battery)	REMA		MRC 80/120A									Battery	red	price
25456198	REMA DIN/MRC 80/120A coding pin, blue, plug (vehicle/charger)	REMA		MRC 80/120A	FZ/Ladegerät									blue	price
25456199	REMA DIN/MRC 80/120A coding pin, blue, socket (battery)	REMA		MRC 80/120A									Battery	blue	price
