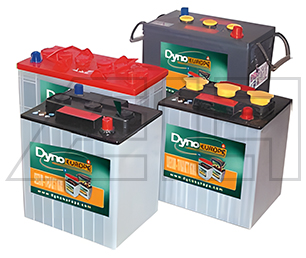

Name: Dyno 9.095.2 Semi Traction Battery 6V 96Ah
Brand: TVH
SKU: 25456190
Availability: InStock

description

A semi-traction battery differs little from a traction battery in terms of design and function. The only difference is in durability. The traction battery can handle significantly more cycles. Both battery types are capable of supplying a constant current over a long period of time. Thanks to thick lead plates and fibreglass separation, they can be easily discharged. In addition, separators made of microporous rubber are used as a technical solution. Thanks to the careful selection of materials, these batteries offer excellent performance, proven reliability and a long service life.

Features:

• Thicker plates
Active material with a specific composition to withstand cyclic discharges
• Grid made of a Pb/Sb/Sn/As/Se alloy, which increases corrosion resistance and improves contact between the active material
• Microporous rubber separators with glass fibre fleece to prevent loss of active material
Up to 300 cycles

Here you will find semi-traction batteries for all intralogistics applications. Simply order online.

Filter

Type

Voltage

Width (mm)

Height (mm)

Weight (kg)

Lenght (mm)

Model

Anordnung

Anschlussklemmtyp

C20 (Ah)

C5 (Ah)

Info

Product.Nr.: 25456190

Dyno 9.095.2 Semi Traction Battery 6V 96Ah

Type	Semi
Voltage	6V
Width (mm)	175
Height (mm)	221
Weight (kg)	17,0
Lenght (mm)	260
Model	9.095.2
Anordnung	0
Anschlussklemmtyp	1
C20 (Ah)	120
C5 (Ah)	96

Product.Nr.: 25456172

Dyno 9.080.1 Semi Traction Battery 6V 80Ah

Type	Semi
Voltage	6V
Width (mm)	176
Height (mm)	222
Weight (kg)	14,0
Lenght (mm)	231
Model	9.080.1
Anordnung	0
Anschlussklemmtyp	1
C20 (Ah)	100
C5 (Ah)	80

Product.Nr.: 25456173

Dyno 9.180.1 Semi Traction Battery 6V 197Ah

Type	Semi
Voltage	6V
Width (mm)	190
Height (mm)	274
Weight (kg)	29,4
Lenght (mm)	244
Model	9.180.1
Anordnung	0
Anschlussklemmtyp	1
C20 (Ah)	240
C5 (Ah)	197

Product.Nr.: 25456182

Dyno 9.580.4 Semi Traction Battery 12V 90Ah

Type	Semi
Voltage	12V
Width (mm)	175
Height (mm)	230
Weight (kg)	26,0
Lenght (mm)	345
Model	9.580.4
Anordnung	0
Anschlussklemmtyp	1
C20 (Ah)	105
C5 (Ah)	90

Product.Nr.: 25456183

Dyno 9.590.3 Semi Traction Battery 12V 90Ah

Type	Semi
Voltage	12V
Width (mm)	175
Height (mm)	220
Weight (kg)	24,0
Lenght (mm)	304
Model	9.590.3
Anordnung	0
Anschlussklemmtyp	1
C20 (Ah)	120
C5 (Ah)	90

Product.Nr.: 25456180

Dyno MF31DC Semi Traction Battery 12V 80Ah

Type	Semi
Voltage	12V
Width (mm)	175
Height (mm)	220
Weight (kg)	23,7
Lenght (mm)	304
Model	9.580.3
Anordnung	0
Anschlussklemmtyp	1
C20 (Ah)	100
C5 (Ah)	80

Product.Nr.: 25456181

Dyno MF31DC Semi Traction Battery 12V 80Ah

Type	Semi WF
Voltage	12V
Width (mm)	172
Height (mm)	242
Weight (kg)	23,2
Lenght (mm)	330
Model	MF31DC
Anordnung	1
Anschlussklemmtyp	DT 1 + 8
C20 (Ah)	100
C5 (Ah)	80
Info	wartungsfrei

Product.Nr.: 25456178

Dyno 9.575.1 Semi Traction Battery 12V 75Ah

Type	Semi
Voltage	12V
Width (mm)	175
Height (mm)	190
Weight (kg)	24,0
Lenght (mm)	353
Model	9.575.1
Anordnung	0
Anschlussklemmtyp	1
C20 (Ah)	90
C5 (Ah)	75

Product.Nr.: 25456179

Dyno 9.575.1 WF Semi Traction Battery 12V 75Ah

Type	Semi WF
Voltage	12V
Width (mm)	175
Height (mm)	190
Weight (kg)	24,0
Lenght (mm)	353
Model	9.575.1 WF
Anordnung	0
Anschlussklemmtyp	1
C20 (Ah)	90
C5 (Ah)	75
Info	wartungsfrei

Product.Nr.: 25456176

Dyno 9.560.2 Semi Traction Battery 12V 60Ah

Type	Semi
Voltage	12V
Width (mm)	175
Height (mm)	190
Weight (kg)	18,6
Lenght (mm)	278
Model	9.560.2
Anordnung	0
Anschlussklemmtyp	1
C20 (Ah)	75
C5 (Ah)	60

Product.Nr.: 25456175

Dyno 9.550.2 Semi Traction Battery 12V 60Ah

Type	Semi
Voltage	12V
Width (mm)	175
Height (mm)	190
Weight (kg)	16,0
Lenght (mm)	242
Model	9.550.2
Anordnung	0
Anschlussklemmtyp	1
C20 (Ah)	60
C5 (Ah)	50

Product.Nr.: 25456177

Dyno 9.555.1 Semi Traction Battery 12V 50Ah

Type	Semi
Voltage	12V
Width (mm)	175
Height (mm)	220
Weight (kg)	17,2
Lenght (mm)	270
Model	9.555.1
Anordnung	1
Anschlussklemmtyp	1
C20 (Ah)	70
C5 (Ah)	50

Product.Nr.: 25456174

Dyno 9.540.1 Semi Traction Battery 12V 40Ah

Type	Semi
Voltage	12V
Width (mm)	175
Height (mm)	190
Weight (kg)	12,4
Lenght (mm)	207
Model	9.540.1
Anordnung	0
Anschlussklemmtyp	1
C20 (Ah)	50
C5 (Ah)	40

Product.Nr.: 25456188

Dyno 9.680.1 Semi Traction Battery 12V 190Ah

Type	Semi
Voltage	12V
Width (mm)	274
Height (mm)	242
Weight (kg)	59,0
Lenght (mm)	518
Model	9.680.1
Anordnung	3
Anschlussklemmtyp	1
C20 (Ah)	230
C5 (Ah)	190

Product.Nr.: 25456187

Dyno 9.635.1 Semi Traction Battery 12V 155Ah

Type	Semi
Voltage	12V
Width (mm)	223
Height (mm)	223
Weight (kg)	47,5
Lenght (mm)	513
Model	9.635.1
Anordnung	3
Anschlussklemmtyp	1
C20 (Ah)	180
C5 (Ah)	155

Product.Nr.: 25456185

Dyno 9.605.1 Semi Traction Battery 12V 120Ah

Type	Semi
Voltage	12V
Width (mm)	189
Height (mm)	223
Weight (kg)	39,0
Lenght (mm)	513
Model	9.605.1
Anordnung	3
Anschlussklemmtyp	1
C20 (Ah)	140
C5 (Ah)	120

Product.Nr.: 25456186

Dyno 9.605.1 WF Semi Traction Battery 12V 120Ah

Type	Semi WF
Voltage	12V
Width (mm)	189
Height (mm)	220
Weight (kg)	34,5
Lenght (mm)	513
Model	9.605.1 WF
Anordnung	3
Anschlussklemmtyp	1
C20 (Ah)	140
C5 (Ah)	120
Info	wartungsfrei

Product.Nr.: 25456184

Dyno 9.820.0 Semi Traction Battery 12V 100Ah

Type	Semi
Voltage	12V
Width (mm)	253
Height (mm)	240
Weight (kg)	37,5
Lenght (mm)	360
Model	9.820.0
Anordnung	0
Anschlussklemmtyp	1
C20 (Ah)	135
C5 (Ah)	100

Product.Nr.: 25456189

Dyno 9.600.2 Semi Traction Battery 12V 100Ah

Type	Semi
Voltage	12V
Width (mm)	175
Height (mm)	285
Weight (kg)	33,3
Lenght (mm)	345
Model	9.600.2
Anordnung	0
Anschlussklemmtyp	1
C20 (Ah)	125
C5 (Ah)	100

Art.Nr.	Artikelname	Type	Voltage	Width (mm)	Height (mm)	Weight (kg)	Lenght (mm)	Model	Anordnung	Anschlussklemmtyp	C20 (Ah)	C5 (Ah)	Info	Preis
25456190	Dyno 9.095.2 Semi Traction Battery 6V 96Ah	Semi	6V	175	221	17,0	260	9.095.2	0	1	120	96		price
25456172	Dyno 9.080.1 Semi Traction Battery 6V 80Ah	Semi	6V	176	222	14,0	231	9.080.1	0	1	100	80		price
25456173	Dyno 9.180.1 Semi Traction Battery 6V 197Ah	Semi	6V	190	274	29,4	244	9.180.1	0	1	240	197		price
25456182	Dyno 9.580.4 Semi Traction Battery 12V 90Ah	Semi	12V	175	230	26,0	345	9.580.4	0	1	105	90		price
25456183	Dyno 9.590.3 Semi Traction Battery 12V 90Ah	Semi	12V	175	220	24,0	304	9.590.3	0	1	120	90		price
25456180	Dyno MF31DC Semi Traction Battery 12V 80Ah	Semi	12V	175	220	23,7	304	9.580.3	0	1	100	80		price
25456181	Dyno MF31DC Semi Traction Battery 12V 80Ah	Semi WF	12V	172	242	23,2	330	MF31DC	1	DT 1 + 8	100	80	wartungsfrei	price
25456178	Dyno 9.575.1 Semi Traction Battery 12V 75Ah	Semi	12V	175	190	24,0	353	9.575.1	0	1	90	75		price
25456179	Dyno 9.575.1 WF Semi Traction Battery 12V 75Ah	Semi WF	12V	175	190	24,0	353	9.575.1 WF	0	1	90	75	wartungsfrei	price
25456176	Dyno 9.560.2 Semi Traction Battery 12V 60Ah	Semi	12V	175	190	18,6	278	9.560.2	0	1	75	60		price
25456175	Dyno 9.550.2 Semi Traction Battery 12V 60Ah	Semi	12V	175	190	16,0	242	9.550.2	0	1	60	50		price
25456177	Dyno 9.555.1 Semi Traction Battery 12V 50Ah	Semi	12V	175	220	17,2	270	9.555.1	1	1	70	50		price
25456174	Dyno 9.540.1 Semi Traction Battery 12V 40Ah	Semi	12V	175	190	12,4	207	9.540.1	0	1	50	40		price
25456188	Dyno 9.680.1 Semi Traction Battery 12V 190Ah	Semi	12V	274	242	59,0	518	9.680.1	3	1	230	190		price
25456187	Dyno 9.635.1 Semi Traction Battery 12V 155Ah	Semi	12V	223	223	47,5	513	9.635.1	3	1	180	155		price
25456185	Dyno 9.605.1 Semi Traction Battery 12V 120Ah	Semi	12V	189	223	39,0	513	9.605.1	3	1	140	120		price
25456186	Dyno 9.605.1 WF Semi Traction Battery 12V 120Ah	Semi WF	12V	189	220	34,5	513	9.605.1 WF	3	1	140	120	wartungsfrei	price
25456184	Dyno 9.820.0 Semi Traction Battery 12V 100Ah	Semi	12V	253	240	37,5	360	9.820.0	0	1	135	100		price
25456189	Dyno 9.600.2 Semi Traction Battery 12V 100Ah	Semi	12V	175	285	33,3	345	9.600.2	0	1	125	100		price
